Cubic Q Switch Magnesium Aluminate Spinel / Co Spinel Passive Crystals

Name: Cubic Q Switch Magnesium Aluminate Spinel Co Spinel Passive Crystals
Brand: CRYLINK
Price: 1 USD

China Cubic Q Switch Magnesium Aluminate Spinel / Co Spinel Passive Crystals wholesale

Brand Name : CRYLINK

Place of Origin : China

Certification : Iso9001

MOQ : 1 Pieces

Price : negotiation

Packaging Details : Carton

Delivery Time : 3-4 weeks

Payment Terms : TT

Supply Ability : 100 pieces /month

Model Number : CRYLINK-Co Spinel Crystal

Chemical formula : Co2+:MgAl2O4

Crystal structure : Cubic

Lattice parameters : 8.07Å

Density : 3.62 g/cm3

Melting Point : 2105°C

Refractive Index : n=1.6948 @1.54 μm

Contact Now

Cobalt-doped magnesium aluminate spinel (Co:MgAl2O4) allow the generation of short nanosecond pulse with high peak power around the eye-safe wavelength of 1.5um,perfect for telemetry applications. The absorption spectrum of Co2+-doped MgAl2O4 exhibited a broad absorption band in the wavelength range of 1200–1600 nm, which indicated that Co2+ ions substituted for the tetrahedrally coordinated Mg2+ ions in the MgAl2O4 lattice. Passive Q-switching of solid-state lasers with solid-state saturable absorbers is a very attractive Q-switching technique because it allows to develop compact and low cost laser sources of nano and sub nanosecond pulses far various applications

Physical and Chemical Properties

Property	Value
Chemical formula	Co2+:MgAl2O4
Crystal structure	Cubic
Lattice parameters	8.07Å
Density	3.62 g/cm3
Melting Point	2105°C
Refractive Index	n=1.6948 @1.54 μm
Thermal Conductivity/(W·cm-1·K-1@25°C)	0.033W
Thermal Expansion /(10-6 /°C@25°C )	1.046
Specific Heat/ (J·g-1·K-1)	5.9
Hardness (Mohs)	8.2
Extinction Ratio	25dB
Orientation	[100] or [111] < ±0.5°
Optical density	0.1-0.9
Damage Threshold	>500 MW/cm2
Doping concentration of Co2+	0.01-0.3 atm%

Metarial and Specifications

Property	Value
Concentrations	(0.05~0.35) wt%
Absorption coefficient	0 ～ 7 cm-1
Ground-state absorption cross-section GSA(E-19 cm2)	2.8(±0.4)@1340nm
Excited state absorption cross-section ESA(E-20 cm2)	2.0(±0.6)@1340nm
Ground-state absorption cross-section GSA(E-20 cm2)	3.5(±0.4)@1540nm
Excited state absorption cross-section ESA(E-20 cm2)	1.0(±0.6)@1540nm
Working wavelength	1200 – 1600 nm
End Configuration	Flat/Flat
Figure of Merit(FOM)	100~300
Coatings	AR/AR@1540,R<0.2%; AR/AR@1340,R<0.2%

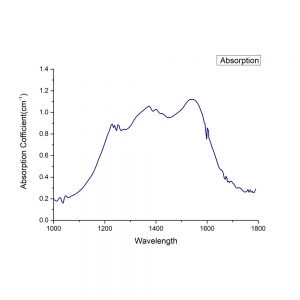

Absorption Spectrum

Cubic Q Switch Magnesium Aluminate Spinel / Co Spinel Passive Crystals

Transmission Spectrum

Cubic Q Switch Magnesium Aluminate Spinel / Co Spinel Passive Crystals

Feature

Rare excited absorption
High constant of Q-switch
High absorption section
Long excited lifetime
Evenly distributed cobalt
Wide absorption band
